Toro Greensmaster® 1021

Toro Greens Mowers For Sale

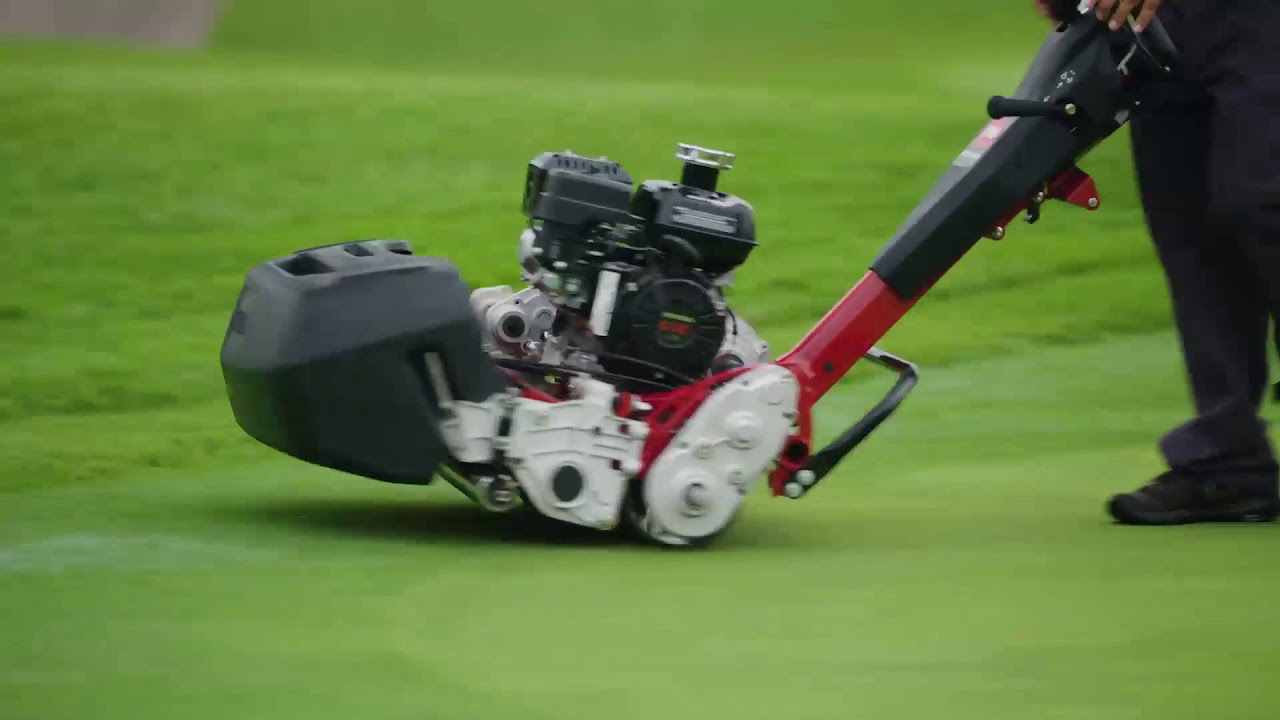

The all-new 21 inch Greensmaster® 1021 walk-behind greensmower is designed to bring every operator and greensmower into perfect harmony with one another.

ENGINE	Honda GX120 - 3.5 hp (2.6 kW) @3600 rpm, gasoline with integral lighting coil.
FUEL CAPACITY	2.1 qts (2L)
FRAME	Fully modular design allows quick disassembly for service / maintenance of all major components
TRACTION DRIVE	Full gear drive transmission with integral traction differential and traction drive disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases.
TRACTION DRUM	Tapered traction drum for improved after cut appearance
MOWING SPEED	2.0 mph (3.2 km/h) to 3.5 mph (5.6 km/h)
TRANSPORT SPEED	5.3 mph (8.5 km/h) with optional transport tires
CLUTCH	Externally-mounted two sided dry disc clutch actuated by dual motion bail
BRAKE	Service/parking – band type.
CUTTING UNIT DRIVE	Quick-change dual-speed gear drive, combined with positive drive belt – 4 possible reel speeds/clip settings.
CUTTING UNIT ATTACHMENT	Tool-free cutting unit removal for service/maintenance or cutting unit exchange for different uses.
CUTTING UNIT OPTIONS	11-blade or 14-blade cutting unit
CONTROLS	Engine mounted: recoil starter, choke, fuel shutoff. Handle mounted: on/off switch, throttle lever, dual motion traction / safety bail, reel engage lever, service/park brake lever, hour meter, whiteboard, light switch (optional).
HANDLE	Loop handle with telescoping adjustment of 5" (12.7 cm) total travel, rubber isolated to minimize operator influence during mowing.
TRANSPORT TIRES / KICKSTAND	Optional – Two, quick-detachable pneumatic tires (3.00X3.25-6). Kickstand is standard
WIDTH OF CUT	21" (53.3 cm)
HEIGHT OF CUT RANGE	For Greens: (Spacer Position One) 0.062" to 0.250" (1.5 mm to 6 mm) For Tees: (Spacer Position Two) 0.125" to 0.375" (3 mm to 9 mm) High Height of Cut Kit: 0.375 to 1.00" (9 mm to 25 mm)
WEIGHT	275 lbs (125 kg) with 11-blade cutting unit, aluminum Wiehle roller
MAINTENANCE REQUIREMENTS	No daily greasing required.
CERTIFICATION	Designed in accordance to applicable ANSI and CE specifications.
WARRANTY	Two-year limited warranty. Refer to the Operator’s Manual for further details.

Key Features

Contact

Semco

Description

The all-new 21 inch Greensmaster® 1021 walk-behind greensmower is designed to bring every operator and greensmower into perfect harmony with one another. With an industry-first telescoping handle, the machine can accommodate operators of different heights and skill levels to deliver a consistent, unparalleled quality of cut on each and every green. Also the modular design makes it easier than ever to maintain – saving significant time and money – resulting in a lower cost of ownership. Detachable cutting unit options with 8, 11 or 14 blade EdgeSeries™ reels are readily available to manicure your turf the way you prefer.

Technical Specifications

Brand

Toro

Model

Greensmaster® 1021

Industry

Lawn Care

Type

Commercial Mower

POWER

3.5 hp (2.6 kW)

ENGINE
