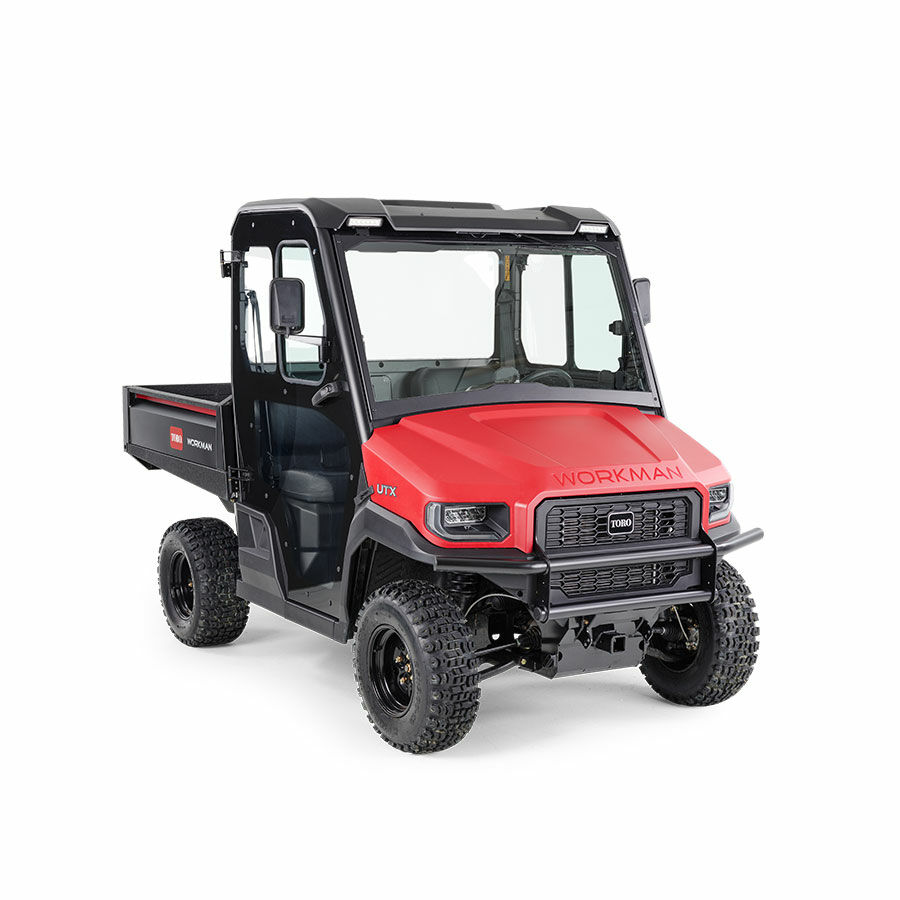

Toro Workman® UTX Petrol

The Workman® UTX is a straight forward, no-nonsense, 4-wheel drive utility vehicle built to stand up to the toughest tests without compromising performance. With true commercial grade components, the highest payload in its class, and a proprietary speed control system, it’s designed for the rigors of a long work week, not a few hours of recreation on the weekends. The Workman UTX has the muscle to haul a ton while still maintaining the ability to regulate speed and sound in sensitive areas. To raise the standard further, every Workman UTX comes standard with power steering, LED headlights, turn signals, brake lights, and a spray-on bed liner.

ENGINE	.998L, inline 4-cylinder, gasoline, 40 hp (29.8 kW), liquid-cooled
STEERING SYSTEM	Power steering standard. Rack and pinion with tilt steering wheel
BRAKES	4-wheel hydraulic disk brakes
SUSPENSION	Front Suspension: MacPherson strut w/ adjustable coils Rear Suspension: Dual a-arm w/ adjustable coils
GROUND CLEARANCE	9” (22.8 cm) 10” (25.4 cm) with optional tires
FUEL CAPACITY	8.5 gallons (32.2 liters)
GROUND SPEED	Forward Ground Speed: 45 mph (72.4 km/h). Adjustable down to 5 mph (8 km/h) Reverse Ground Speed: 15 mph (24.1 km/h). Adjustable down to 5 mph (8 km/h)
TRANSMISSION	Continuously Variable Transmission (CVT) w/ clutch enclosure
GEAR SELECTION	P, R, N, H, L
DIFFERENTIAL	Selectable electronic locking, front and rear
TIRES/WHEELS	Front: 25×9-12 on steel wheels (optional: 27×9-14 on aluminum wheels) Rear: 25×11-12 on steel wheels (optional: 27×11-14 on aluminum wheels)
SEAT BELTS	3-point shoulder
INSTRUMENTS/DASH	Digital display (system diagnostics, speed, rpm, 4WD indicator, gear selection, fuel level, coolant temperature, hour meter, warning lights)
Vehicle Configuration	2-Seat with Bed 4-Seat with Bed
Width	60.5” (153.6 cm) 60.5” (153.6 cm)
Length	123.5” (313.6 cm) 159.5” (405.1 cm
Height	79” (200.6 cm) 79” (200.6 cm
Wheel Base	80” (203.2 cm) 116” (294.6 cm
CARGO BED SIZE INTERNAL	Loading Dimensions: Width: 56” (142.2 cm) Length: 44.5” (113 cm) Height: 11” (27.9 cm) Total volume: 17.05 ft3 (1.58 m3) 2-Seat Capacity: 1,250 lbs (567 kg) 4-Seat Capacity: 1,000 lbs (453.5 kg)
TOTAL VEHICLE CAPACITY	GVW 4,000 lbs. (1814.3 kg)
TOWING CAPACITY	2,000 lbs. (907 kg) 2” (5 cm) receiver standard both front and rear
PLOW MOUNT	Integrated plow mount standard
LIGHTING	Standard – LED headlights, running lights, turn signals (Optional front and rear worklights
WARRANTY	Two-year or 1500 hour limited warranty. Refer to the Operator’s manual for further details.
